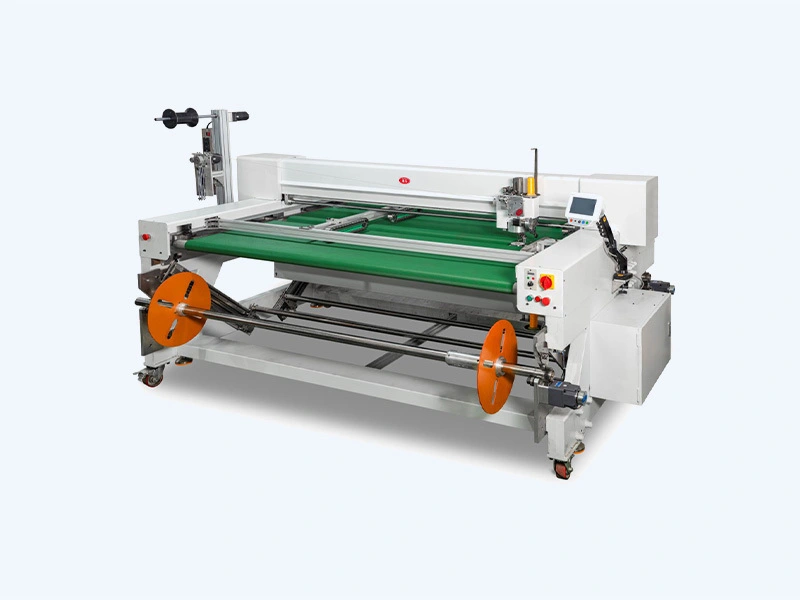

FM-2000 Floor Heating Wire Coiling & Sewing Machine with Endless Length 1

FM-2000 Floor Heating Wire Coiling & Sewing Machine with Endless Length 2

FM-2000 Floor Heating Wire Coiling & Sewing Machine with Endless Length

Name: FM-2000 Floor Heating Wire Coiling & Sewing Machine with Endless Length
Uploaded: 2025-06-18T16:25:47+08:00
Description: FM-2000 Floor Heating Wire Coiling & Sewing Machine with Endless Length is suitable for the heating thread sewing process of clothing, daily necessities, automotive products, heating floor, heating mattress, heating pad and other products.

FM-2000 Floor Heating Wire Coiling & Sewing Machine with Endless Length is suitable for the heating thread sewing process of clothing, daily necessities, automotive products, heating floor, heating mattress, heating pad and other products.

Sewing Area: 2000mm×endless length

Sewing Speed: 1500 needles/minute

Intermitent Presser Foot Stroke: 0.2-4.5/4.5-10mm

Big Presser Foot Drive: Pneumatic

Height Of The Large Presser Foot: Maxi 30mm

Inquiry

Write a Review

Equipment Parameters

Sewing Area	2000mm×endless length
Sewing Speed	1500 needles/minute
Intermitent Presser Foot Stroke	0.2-4.5/4.5-10mm
Big Presser Foot Drive	Pneumatic
Height Of The Large Presser Foot	Maxi 30mm
Type Of Large Presser Foot	Integrated presser foot
Needle Pitch	0.05-12.7mm
Machine Head	Chain sewing mechanism
Rotary Shuttle	crochet hook
Motor	Servo motor 1000W
Air Pressure	0.5Mpa 1.81/min
Weight	1500KG
Machine Size	3320×1920×1550mm

Equipment Advantage

Endless sewing length

Both sheet and roll materials are suitable, with a maximum sewing range of 1000mm*unlimited length, meeting the needs of various types of orders.

Automatic loading and unloading

The innovative automatic loading and unloading function of this device greatly reduces the workload of operators, and one person can operate multiple devices.

Automatic positioning

The use of advanced control systems and professional processing technology can achieve high-speed and efficient production processing, ensuring precise and error free wiring.

Automatic wire cutting

After the wiring is completed, the heating wire is automatically cut off to achieve automated operation.

No Bottom shuttle design

Adopting a chain style no bottom shuttle sewing design, it eliminates the need for downtime and core replacement, greatly increasing work efficiency.

Sliding module

Adopting high-precision and low-noise ball screw guide rails from well-known brands, with sufficient power, stable and smooth operation, strong rigidity, and long service life.

PLC touch screen

Equipped with an intuitive 5.7-inch PLC touch screen, the computer interface is simple and convenient to operate, without the need for professional technical personnel, reducing the technical threshold for production and processing. Supports computer graphics and USB import into machine systems.

Equipment Advantage

Automatic loading and unloading

The innovative automatic loading and unloading function of this device greatly reduces the workload of operators, and one person can operate multiple devices.

Automatic wire cutting

After the sewing wiring is completed, the heating wire is automatically cut off to achieve automated operation.

Automatic wire feeding

Heating Automotive Supplies Sewing Machine is equipped with automatic feeding heating wire function, suitable for both coil and loose wire, effectively preventing unsightly wiring patterns caused by wire entanglement, ensuring product quality.

Cycloidal drive

By using a cycloidal pinwheel reducer, the high-speed rotation of the motor is converted into precise cycloidal motion of the needle. Enable the needle to move along complex trajectories and achieve various pattern sewing. And it provides high-precision and high stability motion control to ensure high-quality sewing results.

PLC touch screen

Heating Materials Making Machine is equipped with an intuitive 5.7-inch PLC touch screen, the computer interface is simple and convenient to operate, without the need for professional technical personnel, reducing the technical threshold for production and processing. Supports computer graphics and USB import into machine systems.

Wide applicability

Heating Leather & Silver Foil Sewing Machine can sew various heating materials including leather, silver foil, fabric, non-woven fabric, polypropylene and other sheets or rolls.
