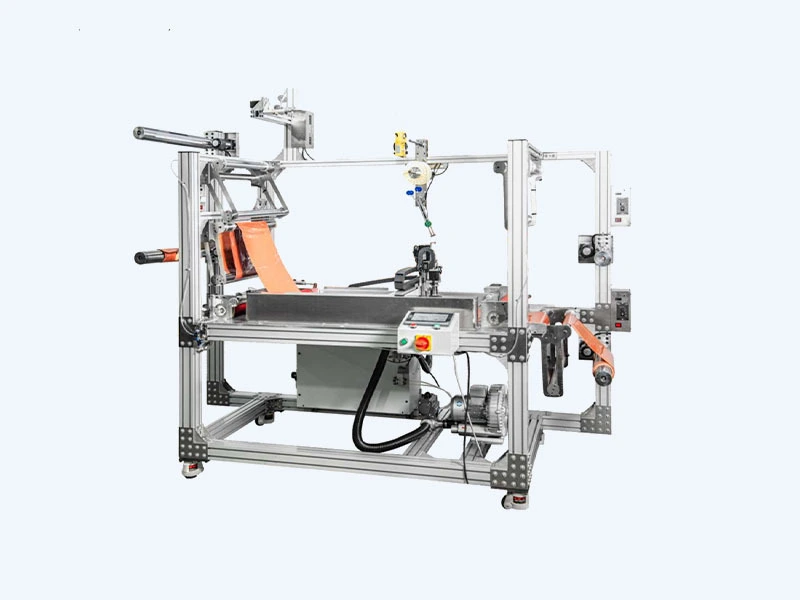

FM-8060B Intelligent Silicone Pad Adhesive Wiring Machine 1

FM-8060B Intelligent Silicone Pad Adhesive Wiring Machine 2

FM-8060B Intelligent Silicone Pad Adhesive Wiring Machine

Cilicone Electrical Heater Wire Spreading & Sticking Machine is suitable for the heating wire bonding process of hard products such as toilet seats, seat cushions,electric mouse pads,car steering wheels,electric coasters,electric trays,etc.

Sewing Area: 800mm×600mm

Sewing Speed: 700mm/min

Heating Wire Size: 0.035-0.080mm

Cloth Feeding Device: fully automatically put wire

Tangent Device: motor drive to hook thread

Inquiry

Write a Review

Equipment Parameters

Sewing Area	800mm×600mm
Sewing Speed	700mm/min
Heating Wire Size	0.035-0.080mm
Cloth Feeding Device	fully automatically put wire
Tangent Device	motor drive to hook thread
Big Presser Foot Drive	roller press fit
Height Of The Large Presser Foot	0-50mm
Line Trace	adhesive wiring
Air Pressure	0.5Mpa 1.81/min
Weight	500KG
Machine Size	2910×1380×1810mm

Equipment Advantage

Automatic loading and unloading

The innovative automatic loading and unloading function of this device greatly reduces the workload of operators, and one person can operate multiple devices.

Automatic cutting

After the wiring is completed, roll material is automatically cut into sheets to achieve automated operation.

Automatic film covering

The use of adhesive technology will not damage the surface of the material, and all types of materials can be bonded together.

Automatic wire feeding

The innovative automatic sending electrical wire greatly reduces the workload of operators, and one person can operate multiple devices.

Edge trimming function

Can quickly and accurately trim the edges of materials to make the product more aesthetically pleasing. Simultaneously equipped with automatic recognition and tracking functions, it can automatically identify the edges of materials and perform tracking and trimming, ensuring the accuracy and stability of processing.

Automatic thread cutting

After the wiring is completed, the heating wire is automatically cut off to achieve automated operation.

Adjusting the width of the trimming knife

The width of the trimming knife can be precisely adjusted according to processing requirements, thereby achieving more precise or larger range trimming operations. Ensuring the accuracy and consistency of edge trimming, improving processing quality and efficiency.

PLC touch screen

Equipped with an intuitive 5.7-inch PLC touch screen, the computer interface is simple and convenient to operate, without the need for professional technical personnel, reducing the technical threshold for production and processing. Supports computer graphics and USB import into machine systems.

Equipment Advantage

Automatic loading and unloading

The innovative automatic loading and unloading function of this device greatly reduces the workload of operators, and one person can operate multiple devices.

Automatic wire cutting

After the sewing wiring is completed, the heating wire is automatically cut off to achieve automated operation.

Automatic wire feeding

Heating Automotive Supplies Sewing Machine is equipped with automatic feeding heating wire function, suitable for both coil and loose wire, effectively preventing unsightly wiring patterns caused by wire entanglement, ensuring product quality.

Cycloidal drive

By using a cycloidal pinwheel reducer, the high-speed rotation of the motor is converted into precise cycloidal motion of the needle. Enable the needle to move along complex trajectories and achieve various pattern sewing. And it provides high-precision and high stability motion control to ensure high-quality sewing results.

PLC touch screen

Heating Materials Making Machine is equipped with an intuitive 5.7-inch PLC touch screen, the computer interface is simple and convenient to operate, without the need for professional technical personnel, reducing the technical threshold for production and processing. Supports computer graphics and USB import into machine systems.

Wide applicability

Heating Leather & Silver Foil Sewing Machine can sew various heating materials including leather, silver foil, fabric, non-woven fabric, polypropylene and other sheets or rolls.
