NG-1520 Table Cloth Cutting & Folding Machine of Plastic & Non woven & Paper 1

NG-1520 Table Cloth Cutting & Folding Machine of Plastic & Non woven & Paper 2

NG-1520 Table Cloth Cutting & Folding Machine of Plastic & Non woven & Paper 3

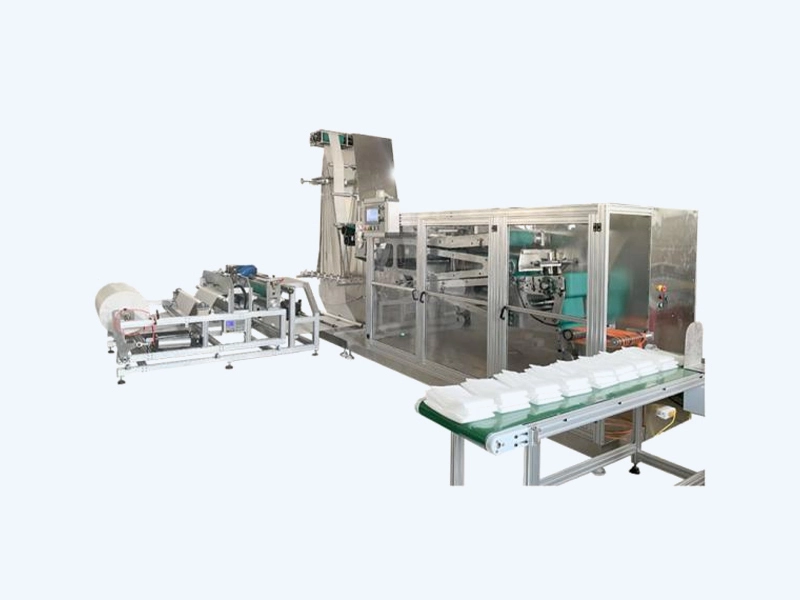

NG-1520 Table Cloth Cutting & Folding Machine of Plastic & Non woven & Paper

Model: NG-1520

Final product size: Expanding size：152CM （wide）×130-410CM（long）20-30cmFold vertically twice, vertical forming width ≤ 36cm; horizontal forming width 20-30cm

Raw material: PE，roll material diameter≤80CM

Production speed: Design speed：100 meters/minute；stable speed: ≥90 meters/minute

Power: About 15KW

Input air source: 0.6MPa-0.8MPa

Raw material loading shaft: 3”

Power supply: 380V；50Hz；3 phases, 5 wires

Machine size: About 8×3×2.4 meters

Equipment direction: Facing the operation side: R material direction: from left to right

Inquiry

Write a Review

Equipment Parameters

	Standard configuration	quantity
1.	Servo table cloth machine	1 set
2.	machine control mode: servo+variable frequency	1 piece
3.	Delta servo motor	7 pieces
4.	Free spare parts（see the following ）
5.	Automatic feeding device (pneumatic feeding of 200 kilograms)	1 set
6.	Carbon fiber folding knife (effectively preventing electrostatic adsorption)	4 sets
7.	Automatic constant tension correction	1 set
8.	Electrostatic treatment device (effectively eliminating static electricity generated during friction)	2 sets
9.	Conveyor belt anti deviation device	The whole set of conveyor
10.	Rubber powered traction roller (to prevent smooth and slippery fabric)	2 sets

Name of spare parts	Famous Brand
10” colourful touching screen	Weilun
PLC	Xinjie
Frequency converter	Delta
Pneumatic components	SMCV
Servo motor	Delta
Encoder	Omorn
Conveyor	Esbelt
Timing belt	Jie Bao
Bearings (main parts)	NSK or HRB

Main equipment configuration and process

Material unwinding, → longitudinal folding, → folding in pairs, → cutting, → four fold horizontally → finished product output.

Rack: The main frame is welded with high-quality national standard square steel pipes, which is stable and firm overall. The surface is treated with rust prevention and covered with stainless steel.

Transmission system: The front of the equipment adopts high-quality guided conveyor belts, and the internal transmission parts are all driven by servo motors, using high-precision synchronous wheels and synchronous belts.

Raw material rack: assembled with European standard aluminum profiles, ensuring overall stability and firmness. The material racks are equipped with constant tension control and automatic correction systems.

Vertical folding device: Using stainless steel triangular buckets for folding, folded and formed by flipping.

Cutting device: Made of high-quality mold steel, the cutting die has a smooth cutting surface and is durable. Using a servo control system, the cutting size error is ≤ 3mm.

Horizontal folding device: The product is folded horizontally for four consecutive times and adopts a servo control system, with precise and adjustable folding position and size.

Quality control: During the folding process, there shall be no secondary damage, stretching or other functional or performance damage to the material. The belts configured for this machine are all made of high-quality anti-static materials, and anti-static equipment needs to be installed to prevent non-woven fabrics from sticking. During the processing, no dirt or foreign objects should be generated, especially black spots or other foreign objects such as oil, metal, flying flowers, etc.

For unwinding and traction pneumatic, the bottom is automatically corrected. For longitudinal folding and traction pneumatic, a bending rod and an electrostatic eliminator are installed. The top of the triangle can be adjusted up and down. For folding and traction pneumatic, an electrostatic eliminator is installed. The top of the triangle can be adjusted up and down, and the bottom of the triangle can be manually adjusted horizontally. For four fold folding, an electrostatic eliminator is installed in each folding part.

图片1 (7)

图片2 (10)

Characteristics

Servo drive system to ensure stable and efficient production.
PLC programming control,simple operation,convenient, fast and flexible adjustment.
Compact and reasonable design, stable operation,low noise and very low failure rate.
The folding accuracy is within ±2mm.

Spare parts

Name of spare parts	Famous Brand
10” colourful touching screen	Weilun
PLC	Xinjie
Frequency converter	Delta
Pneumatic components	SMCV
Servo motor	Delta
Encoder	Omorn
Conveyor	Esbelt
Timing belt	Jie Bao
Bearings (main parts)	NSK or HRB

item	quantity
blade	2 pieces
tool	1 set
