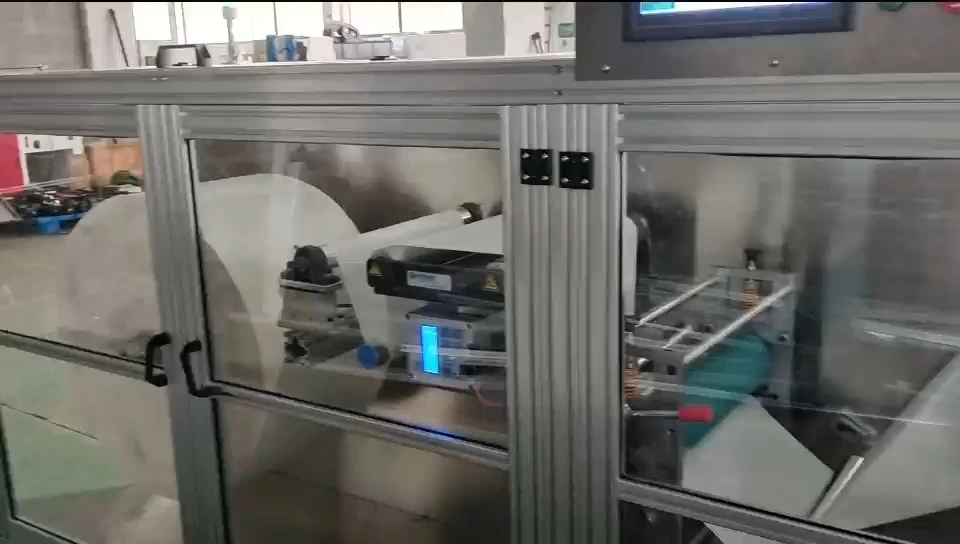

NB-JV380 Disposable Paper Toilet Seat Pad & commode Pad Machine
Paper Toilet Seat Pad & commode Pad Machine, also referred to as Disposable Toilet Seat Cushion Machine, is suitable for various material to cut hole, fold and mold. It is mainly used to produce all kinds of PE, Paper film toilet mat, PD, SMS, PE beauty Sheet, surgical treatment sheet and other products can be customized with different shapes of holes.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Characteristics of Portable Paper Toilet Lid & Mat Machine:
1.Servo drive system to ensure stable and efficient production.
2.PLC programming control,simple operation,convenient, fast and flexible adjustment.
3.Compact and reasonable design, stable operation,low noise and very low failure rate.
4.The folding accuracy is within ±2mm.
Equipment Parameters
| Model | NB-JV380 |
| Product size | Expanding size：38CM （wide）×45CM（long） |
| Raw material | Toilet paper, copy paper, paper film, roll diameter ≤ 80cm, weight 18g-50g |
| Folding way | Vertical faceto face folding, horizontal continuous folding 2 times |
| Equipment performance indicators | |
| Output | 80~100 pieces/minute |
| Pass rate | ≥99%（Excluding factors such as material replacement and material itself） |
| Power | About 15KW |
| Voltage | 380V；50Hz；3 phases, 5 wires |
| Input air source | 0.6mpa-0.8mpa |
| Raw material paper pipe size | Raw material paper pipe size |
| Machine size | About 6×4×2.4 meters |
Main configuration and process
Roll loading → Vertical folding → Cutting holes → Cutting → Continuous 2 times horizontal folding (or one-third folding) → wheel arrange sheets
Rack
Modular rack with fixed standard dimensions. The wall panel of the rack is covered with stainless steel. The production process is advanced and reasonable, the reference surface of the wall panel is flat and not easily deformed, and it is welded to the steel frame and then coated with stainless steel.
Transmission system
The machine is oriented towards the arrangement of conveyor belts, which are driven by servo motors and high-precision synchronous wheels.
Material unwinding rack
Adopting high-precision servo control for material tension and automatic correction.
Cutting holes
The cutting blade and bottom roller are processed with high-quality mold steel, with neat cuts and no burrs.
Vertical folding
Adopting our company's unique multi folding rod form, the number of vertical folding layers and size range can be continuously adjusted.
Forming cutter
The cutting blade and bottom roller are processed with high-quality mold steel, and cut neatly without adhesion.
Finished horizontal folding device
This device is used for the horizontal continuous folding of the product for 3 times, transmitted by a servo motor and automatically adjusted in phase.
Quality control
During the folding process, there shall be no secondary damage, stretching or other functional or performance damage to the material. During the processing, no dirt or foreign objects, especially oil stains, should be generated.
Product output platform
(with counting prompt function)
Parts Brand
| Name of parts | Famous Brand |
| 10 inch color touch screen | MCGS |
| Frequency converter | Xinjie |
| Pneumatic components | SMCV |
| Servo motor | Inovance |
| Encoder | Omron |
| Conveyor | Emmer |
| Timing belt | Jaguar |
| Bearings (main parts) | NSK or HRB |
Sample Display
Paper Toilet Seat Cover Paper
Paper Toilet Seat Cover Paper 6
Paper Toilet Seat Cover Paper 5
Paper Toilet Seat Cover Paper 4
Paper Toilet Seat Cover Paper 3
Paper Toilet Seat Cover Paper 2
Paper Toilet Seat Cover Paper 1
