NB-Z100 Emergency Outdoor Medical Blanket & Rescue Survival Blanket Making Machines
The NB-Z100 Rescue Survival Blanket Making Machine is a high-efficiency production machine designed for manufacturing emergency outdoor medical and rescue survival blankets. Utilizing advanced technology, it rapidly produces high-quality, lightweight, and durable first-aid blankets. These blankets offer exceptional thermal insulation, waterproofing, and wind resistance, making them ideal for outdoor rescue, disaster relief, and medical emergencies. The machine is user-friendly and delivers high output. The compact, sturdy blankets it produces are easy to store and transport, making the NB-Z100 Rescue Survival Blanket Making Machine the ideal choice for emergency services, rescue organizations, and medical institutions, providing reliable support to protect and save lives.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Equipment Parameters
| Model | NB-Z100 emergency blanket making machine |
| Speed | About 400 foldings/minute |
| Effective width | ≤1600mm |
| Raw material diameter | ≤800mm |
| Inner hole of paper core pipe | ≤740mm |
| Folded size of final product | long：100mm；wide ：80- 120mm |
| Expanded size of final product | long：500-2500mm；wide ：500- 1600mm |
| Folding way（vertical） | 10- 16 foldings |
| Voltage and power | 380V / 50Hz / 9.5kw |
| Size | 10500mm×2200mm×1700mm |
| Machine weight | 2500kg |
Spare parts:
| Open spanner | 2 sets |
| Screw driver | 1 piece |
| Six angle wrench | 1 set |
| Button switch | 1 set |
| Spring | 2 pieces |
| Screw and nut | 10 pieces |
| Sharper | 2 pieces |
| Special tool box | 1 piece |
Performance and characteristics:
Application: medical sheets, massage sheets, outdoor emergency blankets and so on.
The working principle: by magnetic powder unreeling → drawing → finalize the design → 10- 16 vertical folding (6.5kw vacuum pump adsorption folding) → synchronous drawing → by servo dot line → high and low counting → final product output.
Effective width: 1600mm; with pneumatic core shaft + magnetic powder controller for unwinding to keep constant tension.
It is equipped with a set of traction device. The upper and lower rollers are rubber rollers with big friction and automatic lifting function to easily pass through material.
Because the material is slippery,our 304 # stainless steel folding plates specially made prevent material from wrinkling, deviation, gathering air, folding irregular, etc.
Line-dotting is driven by servo system. On the touch screen, line dotting gap can be set, such as 1000mm; 1002mm; 1998mm; 2200mm; 2500mm, etc.
The folding roller with special treatment can produce silver paper, OPP complex aluminum film, PE complex aluminum film, paper peritoneal materials, spunlace non-woven fabrics, PP anti-sticking non-woven fabrics.
The transmission components is with two-piece gear with umbrella gear drive to eliminate the gear gap. Their processing technology is fine,with low noise.
Machine table and the part touching final product is made by 304 stainless steel.
Equipment using PLC + 1 group of servo system + touching screen + inverter joint control. Their electrical wiring position is treasonable, beautiful, easy to operate. The whole structure is compact, fast, stable, simple to operate.
Major configuration:
| Item | Specification | Quantity | Function | Brand |
| Machine frame | 10#+80# U-steel | Support 2 tons | International standard | |
| Material putting device | Iron axis | 1 set | φ：55mm | Guta, Shanghai, China |
| Material putting device | Magnetic powder control system | Iron axis | 1 set | Zhejiang, China |
| Material feeding device | Cylinder | 2 pieces | 650* 150mm | Suonuo/Airtac/Shan Nai Si |
| Aluminum guide roller | aluminum roller | 10 pieces | φ：30mm | Guta, Shanghai, China |
| Traction roller | Rubber roller | 1 set | φ：120mm； 65℃ | Kangda, China |
| Folding system |
Folding frame | 1 set | 1600x2500mm; 304 stainless steel | |
| Rubber roller | 12 sets | φ：80mm； 65℃ | Kangda, China | |
| Fan box | 1 piece | 1600x1000mm | Kangda, China | |
| centrifugal blower | 1 piece | 6.5kw | Imported brand | |
| Servo system |
PLC | 1 piece | 24 points | Taiwan Delta |
| Drive | 1 piece | Taiwan Delta | ||
| Power supply | 1 piece | Taiwan Delta | ||
| Coder | 1 piece | 1000 pulse | Taiwan Delta | |
| Colour screen | 1 piece | 7” | Taiwan Delta | |
| Serv motor | 1 piece | 1.75KW | Taiwan Delta |
| Item | Specification | Quantity | Function | Brand |
| Traction roller | Traction roller | 2 sets | Rubber roller φ: 100mm； 65℃ | Kangda, China |
| Discharge chute | discharge chute | 1 set | 304# stainless steel | |
| Line dotting device | Line dotting knife | 2 sets | Dotting steel knife + titanium alloy blade | Imported material |
| Counter |
counting | 1 set | 2 section speed (reduce speed and stop) | Shiwei, Hongkong |
| Photoelectric detector | 1 set | ultrared rays | OMRON | |
| Inverter | Inverter | 1 set | 2.2KW | Ke Chuang Li Yuan （America funded） |
| Motor | Motor | 2 sets | 2.2KW；2.2KW | Shanghai or Hongzhou, China |
| Potentiometer | 1 set | Zhentai, China | ||
| Bearing Bearing | Many sets | transmission | Haerbing Special NSk | |
| Button switch | 5 sets | Zhentai, China | ||
| Auto breaker | 2 sets | Zhentai, China | ||
| relay | 2 sets | Zhentai, China | ||
| contactor | 2 sets | Zhentai, China | ||
| Table board | working table | 304# stainless steel | ||
| Sealing board | sealing board | 1.5mm thick; computer painting |

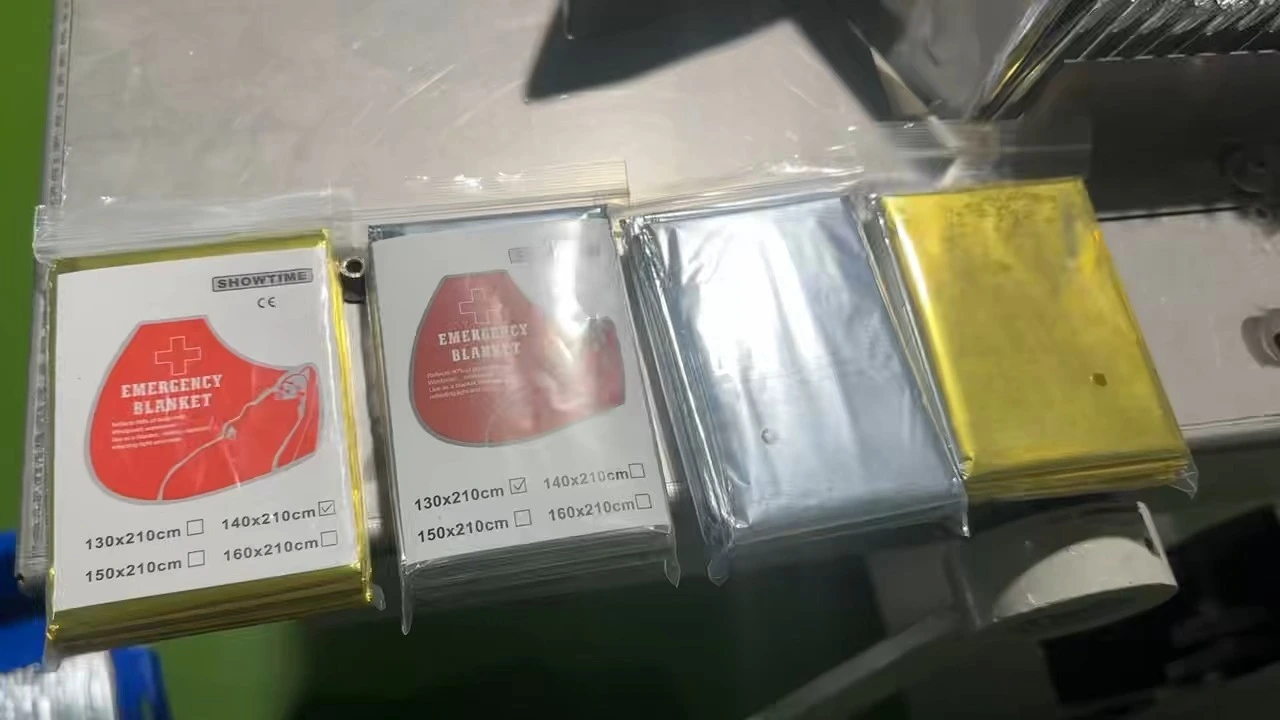

Sample Display
Rescue Survival Blanket Making Machine3
Rescue Survival Blanket Making Machine2
Rescue Survival Blanket Making Machine1
Rescue Survival Blanket Making Machine (2)
Emergency Blanket Folding Machine1
Emergency Blanket Folding Machine
