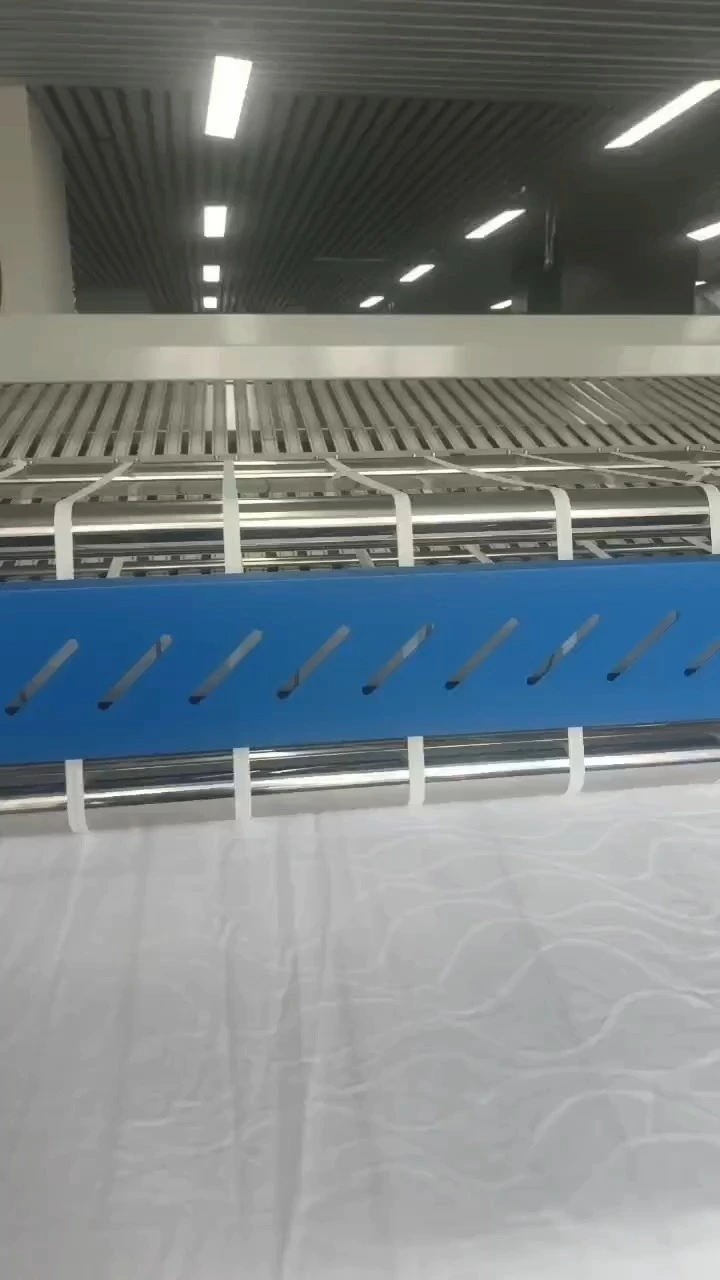

ZD- 3300 Bath Towel & Bed Sheet & Quilt Cover & Blanket Folding Machine
The ZD-3300 is an advanced automatic folding machine designed for efficiently handling bath towels, bed sheets, quilt covers, and blankets. Equipped with intelligent size recognition technology, it adapts seamlessly to various sizes and fabric types. Its low-profile, widened horizontal structure ensures remarkable stability, minimizing vibration even under uneven loads. Built with high-quality components, clear circuitry, and a self-diagnosis system, it guarantees reliability and safety. Energy-efficient frequency conversion drive ensures strong yet smooth operation with low noise and power consumption. Durable stainless steel rollers and zinc-sprayed components enhance longevity. The user-friendly interface, featuring a large screen and buttons, allows simple operation and customization for diverse specifications.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Characteristics:
Bath Towel & Bed Sheet & Quilt Cover Folding Machine Adopts a large screen dot matrix LCD display and intelligent control system, with a good Chinese human-machine dialogue interface, easy to operate.
Some sensors in the machine can automatically recognize the size of the towel and adjust the appropriate folding width, and fold it horizontally through the folding plate.
The machine automatically measures the length of the towel through an encoder on the rotating shaft and determines the folding method of the towel. It uses a unique forward and reverse rotation and blowing device to achieve longitudinal folding of the towel.
Vertical folding increases the adjustable tilt of the conveyor platform to achieve the folding effect of towels.
The control system is designed and manufactured using various intelligent control technologies, combined with new technologies in the fields of computer, communication, and control, to meet the actual needs of towel folding machines. It has personalized embedded software and intelligent comprehensive detection functions.
Programming control can be carried out according to the needs of different customers, with multiple modes of manual and automatic operation, simple operation, high degree of automation, and adaptability to a wide variety of towel types.
When stacking and discharging materials, an automatic telescopic device is used. With the length of the inelastic conveyor belt unchanged, the telescopic and expansion mechanism of the cylinder is used to control the extension and retraction of the conveyor belt, and the direction of the conveyor belt's extension and retraction is controlled by this device, so that multiple towels after stacking can smoothly enter the next conveyor belt through the conveyor belt.
The action of the photoelectric switch control mechanism is combined with frequency conversion speed regulation, which not only has high operating accuracy but also saves energy and electricity.
Team introduction
It is currently the device with the highest number of folding layers (able to complete 32 layers of folding) and the highest folding accuracy in China.
Horizontal folding is achieved through the jet of airflow, while cross folding is accomplished through a folding knife.
It has a selection function and can directly deliver small materials that do not need to be folded after ironing to the workbench.
It can be used in conjunction with various specifications and models of ironing machines, and is the preferred choice for major hotels, inns, hospitals, textiles, railways, clothing factories, washing factories, and other industries.
Product Parameters:
| Item | Unit | ZD-3300 |
| Maxi fold | long×wide mm | 3200×3200 |
| Capacity（common bed sheet） | m/min | 30 |
| Air pressure | Mpa | 0.5-0.7 |
| Compressed air comsuption | min | l ~80 |
| Power | kw | 1.5+0.55 |
| Electricity consumption | kw /h | 0.6 |
| Air compressor displacement | m3/min | 0.3 |
| Machine size | mm | 3723×2950×1990 |
| Machine weight | kg | 1500 |
| External power cord diameter | mm | 2.5 |
| Voltage | V/P/Hz | 380/3/50 |
Equipment Advantage
Size recognition technology can meet the needs of different sizes and fabrics.
The overall horizontal design and widen body reduce the shaking caused by unbalanced load.
The clear circuit and high quality parts make the machine quality guaranteed.
Complete self-diagnosis function and safety protection system.
Cool and quiet machine system make operation stable and safe.
Strong power and smooth operation.
Adopting a variable frequency speed regulation system, it has low energy consumption and smooth operation.
Stainless steel zinc spray treatment.
The large roller is made of high-quality stainless steel, which is durable and long-lasting
Simple operation, diverse specifications.
The combination of a large screen and buttons makes the operation simpler.
Customized according to needs.
