CY-265 Coffee Filter & Coffee Paper Filter Bag Making Machine
CY-265 Coffee Filter & Coffee Paper Filter Bag Making Machine

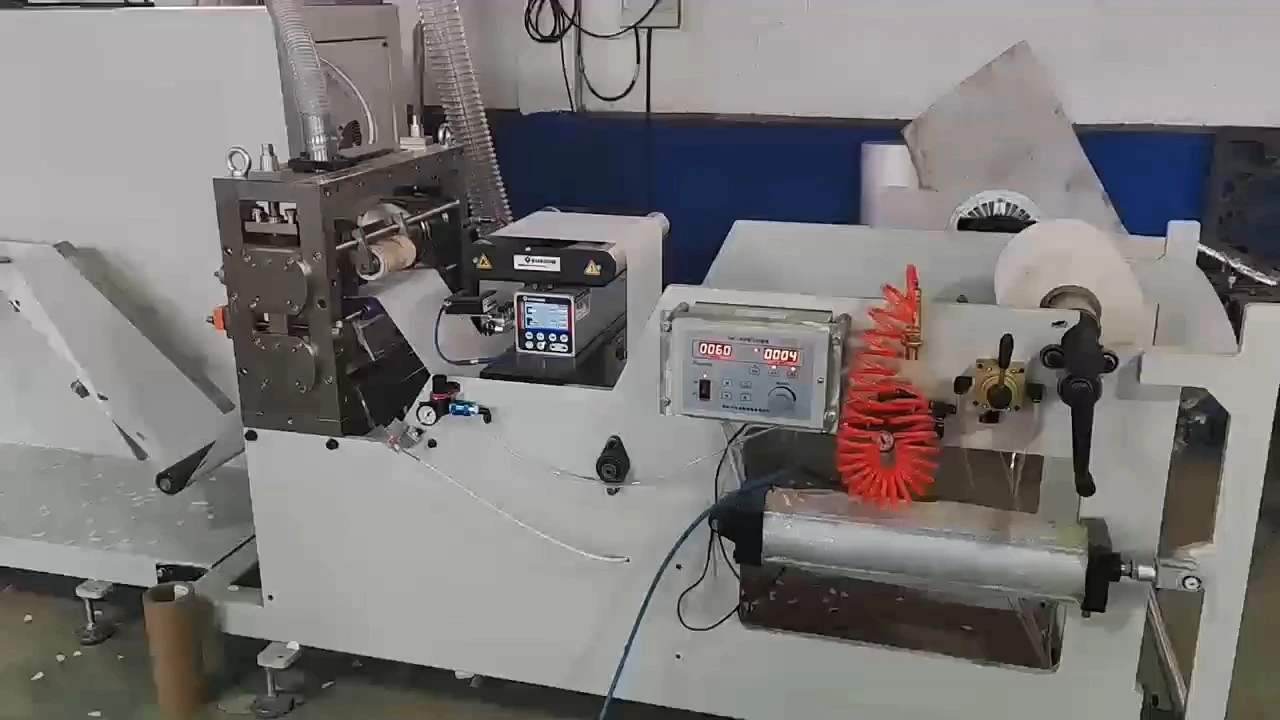

CY-265 Disposable Coffee Filter & Paper Filter Bag Machine is a major update on the old equipment, solving the problem of manual sorting of finished products and waste materials in the past. The new equipment adopts an automatic waste recycling device to automatically separate finished products and waste materials, realizing the functions of automatic counting and automatic stacking. The equipment adopts full servo PLC electronic control, human-machine interface, high degree of automation, faster speed, and higher stability.
Working principle:
Composition:
| No. | Item | Quantity | Note |
| 1 | Material loading device | 1 set | Air expansion shaft |
| 2 | Feeding device | 1 group | Magnetic powder tension unwinding |
| 3 | Deviation correcting device | 1 group | Fully automatic correction |
| 4 | Folding device | 1 group | Face to face folding |
| 5 | Traction device | 1 group | Steel roller to rubber roller |
| 6 | Edge sealing device | 1 group | Steel to steel embossing |
| 7 | Die cutting device | 2 groups | One of groups cut small ears |
| 8 | Waste recycling device | 2 groups | Rim and small ear wastes |
| 9 | Automatic counting device | 1 group | |
| 10 | Automatic control system | 1 set |
|
Power requirements: 1. Voltage requirement: 380V ± 10%; 2. Frequency requirement: 50Hz; 3. Current requirement: 60A or above; 4. Please refer to the circuit diagram for specific power installation. |
Equipment maintenance: 1. Lubricating oil that does not affect equipment performance must be used; 2. All transmission tightness is reasonable; 3. A suitable working environment for the equipment needs to be provided. If the air is dry, it will increase the static electricity of the product, and it needs to be appropriately humidified; 4. Equipment may malfunction during use. If it cannot be resolved in a timely manner, it is best to contact the manufacturer for timely resolution. |
Parameter:
| Feeding part： | |||
| Raw material width | 265mm（V02） | Fixing way | Fixed with a material bearing inflation shaft |
| Maxi raw material diameter | Φ1100mm | Unwinding method | Adopting fully automatic magnetic tension or flat belt control for unwinding |
| Paper core tube diameter | φ76.2mm | Air pressure | 0.6Mpa |
| Material weight | 50 grams | Host structure | Wall panel type |
| Feeding way | Pneumatic automatic feeding | ||
| Host part： | |||
| Design speed | 500 pieces/min | Die cutting device 2 | Make according to the shape of the sample, with a die-cutting size error of ± 2mm |
| Production speed | 300-500 pieces/min | Waste recycling device 2 | Coffee bag waste, recovered by vacuum pump suction |
| Final product size | Made according to your sample，error: ±3mm； | Conveyor device 1 | Flat belt conveyor, transporting raw materials to designated locations, equipped with suction device |
| Deviation correcting device | Fully automatic correction ensures minimal error when misalignment occurs | Conveyor device 2 | Intermittent flat belt conveyor to transport finished products out of the machine |
| Die cutting device 1 | Small ear die-cutting, equipped with auxiliary traction device | Automatic counting | Belt conveyor, manual sorting |
| Waste recycling device 1 | Small ear waste is automatically sucked away, using a vacuum pump for suction | Equipment structure | Main wall panel structure |
| Folding device | Use a dedicated molding tool to fold in half in the middle | Transmission system | Servo motor control |
| Traction device | Use steel rollers to pull rubber rollers | Control way | PLC control, human-machine interface |
| Edge pressing device | Use steel rollers to press and seal the edges of the steel rollers, equipped with heating devices | Safety protection | |
3. Equipment materials: composed of main wall panel structure;
4. Equipment appearance: Based on factory standards, special colors can be agreed upon in advance;
5. The gantry crane is connected in a split structure to maintain stability during operation;
6. Electric control part and main configuration:
- The overall power of the equipment is about 26kw, 380V 50HZ;
- Adopting PLC control and touch screen human-machine interface;
- Electrical components: Schneider;
- Pneumatic components: Delixi;
- Bearings: Some use imported NEY bearings, while others are domestically produced bearings;
Final Product Display：
Different sizes are customized.
Different packing machines are customized.
