Nonwoven Needle Punched Wipe Folding and Colour Printing Machine NB-700 1

Nonwoven Needle Punched Wipe Folding and Colour Printing Machine NB-700 2

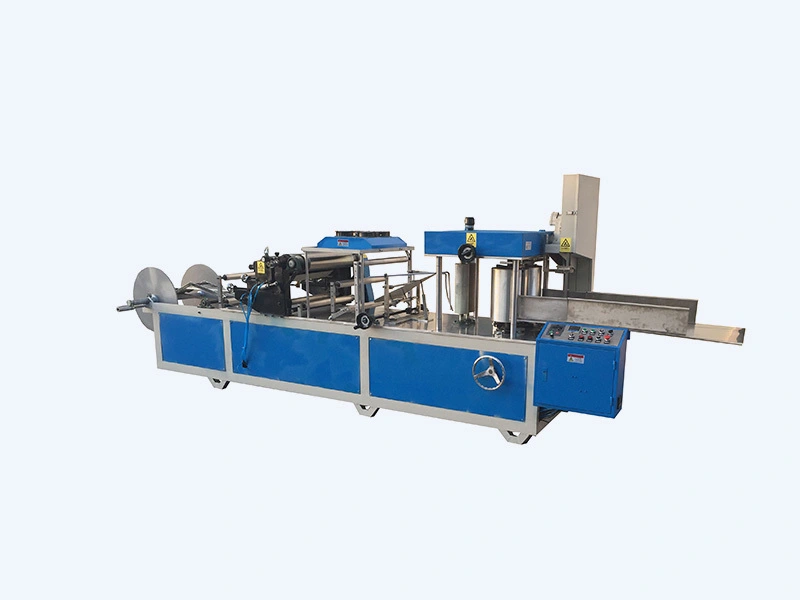

Nonwoven Needle Punched Wipe Folding and Colour Printing Machine NB-700

Model: NB-700

Production speed: 300 pieces/minute（depend on material characteristics)

Folded size of final product: long：350mm；wide：50-250mm

Expanded size of final product: long：700mm；width：200-500mm

Folding way: V、N、W、1/4

Voltage: 380V, 50Hz

Total power: 4.4kw

Size（straight line）: 4500mm×1500mm×1700mm

Weight: 1700kg

Inquiry

Write a Review

Equipment Parameters

Item	specification	quantity	function	brand
Machine frame	10#+80# U- steel		Support 2 tons	International standard
discharging device	Synchronous wide belt	1 set	Discharge material by stepless various seed	International standard
	Discharge frame	1 set	special made to be wider	International standard
Aluminum guide roller	aluminum roller	5 pieces	φ：30mm；	Guta, Shanghai, China
Folding plate	Folding support（hand wheel type ）	1 set	400mmx1 set Teeth: 30mm x 8 sets	304# stainless steel
Cutter	band saw cutter	1 set	cut nonwoven	Imported material
Discharge chute	discharge chute	1 set	undertake products	304# stainless steel
bearing	bearing	Many sets	transmission	Haerbin bearing；special NSK
counter	counting	1 set	count	Shiwei, Hongkong
	electromagnetic valve	1 set	pneumatic count (quick and sensitive )	Suonuo
	Photoelectric detector	1 set	ultrared rays	OMRON
Inverter	inverter	1 set	2.2KW	deal（Taiwan funded）
Motor	motor	2 sets	2.2KW；2.2KW	Shanghai or Hongzhou, China
Potentiometer		1 set		Zhentai, China
Button switch		5 sets		Zhentai, China
Auto breaker		2 sets		Zhentai, China
relay		2 sets		Zhentai, China
contactor		2 sets		Zhentai, China
Table board	working table			304# stainless steel
Sealing board	sealing board		1.5mm thick	plastic spraying

Needle Pitch	0.05-12.7mm
Machine Head	Flat sewing machine (double spin shuttle)
Line trace	Single needle flat seam
Rotary Shuttle	Double the capacity rotary shuttle
Air Pressure	0.5Mpa 1.81/min
Weight	500KG
Machine Size	2760×2080×1380mm

Introduction

700mm folding machine: 4.5 meter long,1.3 meter wide, 1.7 high.

Iron working table to bear the weight is thickened. Saw pulley is made by pig iron, and its wheel surface is treated. Its outer ring is covered by special rubber to reduce noise, and prevent from being dirty. Cutting is stable, and the cutter does not run randomly.

At the tailstock for loading raw material, 5kg of magnetic powder tension controller combined with magnetic powder ncurrent controller at control panel control material feeding and adjustment is more convenient(because big roll of needle punched nonwoven is very soft and wide belt will press material in so it is not suitable).

Production speed: 400 pieces / min for 700mm table cloth (specific material adjustments based on a variety of materials). According to different nonwoven fabric tension, at 2 places tension can be adjusted in order to ensure the dimensional accuracy of the finished folding.

Its folding roller needs heightening and it is made by domestic high-quality 45 # steel with quenched hardness of HB220-280 degrees and hard chrome plated surface. Paper clapping mouth is processed by line cutting. Cloth clapping knife and cloth inserting knife are made by good quality of 4.0 thick 304 stainless steel . Crack is closely and even without gaps. cloth clapping knives and clamping chuck match tightly and nicely so they are not loose. It has two sets of folding medium disks where screw rod adjusts cloth bias and multiple folding methods can be transformed. At the tail of loading cloth, double brackets are used to firm for the fabric stability and small bias. New disassembly is used to be convenient and easy to disassemble.

Bearing material is of domestic high-quality 45 # steel. Footstock is equipped with wide belt to convey synchronously and with automatic sharpening device and automatic counting device. (Note: 1. low counting sound. 2. Slider under the folding roll is increased to lessen sound. 3. Conveying roll in front of the folding roll uses double conveying and upper gear positions to improve the folding stability. 4. Pull-type is used for discharge chute so it is easy to change tool. 5. Control table surface is made by stainless steel and looks beautiful;cabling positioning for electrical appliance is reasonable. 6. imported knife blade is used.)

The whole table and the tdischarge chute are made of stainless steel, and the knife back to the end of the chute length is 0.8 m. It is folded out by plate folding machine so it is smooth and even and precise in size. Bearing material is domestic high-quality 45 # steel, chrome plated.

Frequency controller is from Taiwan-funded factory. Its total power is 4.4 kilowatts with electrical wiring, reasonable, beautiful and easy to operate.

Overall frame is made by international formed steel with surface rust treatment. All the machine platens do all anti-rust paint treatment with precise welded frame and adequate reinforcement brackets. Pulleys, umbrella gears and transmission parts are all with center accuracy. Main gears are processed by pieces to be easy adjust gap and ensure the smooth operation of the machine.

All standard screws and the main components are of domestic high-quality 45 # steel and SHCS. Parts which are easy to affect final products are made of stainless steel. All plated parts are electroplated twice. Painting is made 3 times so they are shining and not rust or not delaminated within 2 years.

Long-term technical guidance is offered by us.




Characteristics

Using non-stop folding way, cut, automatic count finished products.

Use band saw blade to cut folded finished products to make cutting rim neat, and the left and right length same. Use imported durable knife tool which is not easy to heat and has automatic knife sharpener. finished products are sent in 2 lines.

Use pneumatic counting device can arbitrarily set the desired number of sheets of each bundle package. When the cloth between each bundle comes out at a high-low step shape to be convenient for packaging

Mechanical low or high speed to variable speed, high stability.

Folding method of non-woven sheet is of triangle and fork-type manner. After adjustment, folding is convertible like W, Z, 1/4 folding and so on.

Folding way:

图片3 (4)

product display

图片8 (2)

图片7 (2)

图片6 (4)

图片5 (3)

图片4 (4)

Folding Effect

图片14 (2)

图片13 (2)

图片12 (2)



图片9 (2)

Printing Effect


Packing Effect

Parts

Open spanner	2 pieces
Screw driver	1 pieces
Six angle wrench	1 set
Button switch	1 set
Spring	2 pieces
Screw and nut	10 pieces
Sharper	2 pieces
Special tool box	1 piece
