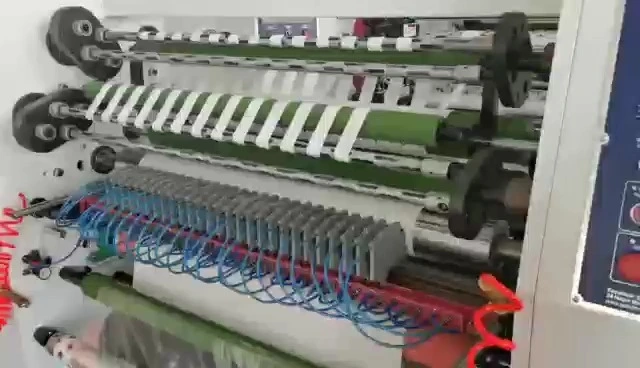

NY-1000D Medical Tape Slitting Rewinding Machine
NY-1000D Medical Tape Slitting & Rewinding Machine is a professional equipment designed for processing various adhesive medical tapes. It efficiently slits and rewinds a wide range of materials, including zinc oxide plaster, non-woven paper tape, silk tape, and PE micropore tape. The machine supports multiple core types such as paper, plastic, or metal cores, ensuring versatility for different production needs. Equipped to handle both toothed and common medical tape slitting, it offers precise winding and high efficiency. Ideal for medical supply manufacturers, the NY-1000D ensures reliable performance and is essential for producing high-quality medical tapes in bulk.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Applicable material:
NY-1000D Medical Tape Slitting & Rewinding Machine is designed for precision processing of various adhesive medical tapes, including zinc oxide plaster, non-woven paper tape, silk tape, and PE micropore tape. It accommodates multiple core types such as paper, plastic, and metal cores, ensuring versatile and efficient production for medical tape manufacturers.
Specification:
| Operation width | 1100mm |
| Max unwinding diameter | 800mm |
| Max rewinding diameter | 320mm |
| MINI SLITTING WIDTH | 12.5mm |
| Slitting inner diameter of paper tube | 25.4mm |
| Mechanical speed | 0-130m/min |
| Cutting blade | 0.2*22*60mm |
| Machine power | 5 kw |
| Machine size | 2400 x1300 x1500mm |
Usage:
Zinc Oxide Plaster & Non Woven Paper Slitting Machine is used to slitting kinds of adhesive medical tape with saw-tooth and common medical tape . Such as zinc oxide tape, silk tape, non woven paper tape, pe micropore tape etc.
Precision Slitting
Accurately slits both toothed-edge and straight-edge medical adhesive tapes to specific widths.
High-Speed Rewinding
Efficiently rewinds slit tapes onto paper, plastic, or metal cores for packaging and distribution.
Material Processing
Ideal for handling zinc oxide tape, silk tape, non-woven paper tape, and PE micropore tape.
Versatile Production
Supports both large-volume batch processing and customized, small-batch orders for various medical tape types.
Allocation list:
| 1 | Main motor(Taiwan Liangji) | AC+5HP+ frequency control(Taiwan Shi Lin) | 1 Suit | 10 | Unwinding tension | Manual | 1 suit |
| 2 | Drive roller(knurling teflon) | Diameter 100mm | 1 piece | 11 | Rewinding tension | Automatic/manual | 1 suit |
| 3 | Tension shaft(embossing teflon) | Diameter 100mm | 1 piece | 12 | Length meter counter | 3 phase | 1 suit |
| 4 | Spread smooth shaft | Diameter 100mm | 1 Suit | 13 | Air blade shaft | Diameter 120mm | 1 suit |
| 5 | Unwinding press roller | Integrated | 1 suit | 14 | Air blade dovetail groove | Integrated | 1 suit |
| 6 | Exchange shaft system | Manual/automatic | 1 suit | 15 | Flat blade | Screw type | 1 suit |
| 7 | Unwinding shaft | Mechanical shaft(3 inch) | 1 piece | 16 | Air blade | Optional | |
| 8 | Guide roller | Diameter 90mm | 2 pieces | 17 | Rewinding pneumatic shaft | 25.4 mm | 5 pieces |
| 9 | Embossing guide roller | Diameter 80mm | 2 pieces | 18 | Maintain tool | 1 suit |
The tape core can be paper core, metal core or plastic core with spool or without.
